R2000 Long Range 860-928MHz 4 Port UHF RFID Fixed Reader

FOB Reference Price:Get Latest Price
US $480-530 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
VANCH
Model Number:
VF-747
Chip:
Impinj R2000 Chip
Frequency range:
860-928MHz(customized)
Input/Output:
2 input, 2 output
Antenna Interface:
4 Ports
Read range:
10 to 25 meters (depends on tag)
RF Connector:
TNC
Protocol:
ISO18000-6C/6B(EPC GEN2)
Type:
UHF RFID Fixed Reader
Interface:
RS232/TCP-IP/RJ45/Wiegand
Application:
warehouse inventory, asset tracking and so on
Supply Ability
Supply Ability:
5000 Unit/Units per Month UHF RFID Fixed Reader
Packaging & Delivery
Packaging Details
1 set of UHF RFID Fixed Reader in a carton
Port
Shenzhen

R2000 Long Range 860-928MHz 4 Port UHF RFID Fixed Reader

Product Description

1. Support EPC global UHF Class 1 Gen 2 / ISO 18000-6C/ ISO18000-6B standard electronic tags;

2. Working frequency 860-868MHZ,902-928MHZ(Can be adjusted according to the requirements of different countries or regions);

3. Support RS232,RS485 ,TCP/IP and wireless communication ways;

4. Support 1, 2, 4 external TNC antenna interface;

5. Output power up to 30 dbm(Adjustable), inventory tags peak velocity, > 50 PCS/SEC;

6. Support active ,command and trigger a variety of work modes;

7. Reading buzzer and LED status indicator; Support online upgrade firmware through communication interface;

8. Reader provide 2 road light isolated input, 2 road light output I/O interface, convenient for application integration;



Description



Order code

VF-747

Performance Index

Frequency range

860Mhz – 960Mhz(Can be adjusted according to different countries or regions)

Supported regions

US, Canada and other regions following U.S. FCC

Europe and other regions following ETSI EN 302 208 with & without LBT regulations

Mainland China

Japan Korea

Malaysia

Taiwan

Frequency modulation

FHSS or fixed-frequency,  can be set by software

RF output

+20.0 to +30 dBm; 50 ohm load.

Peak inventory speed

> 50 tags/sec

Tag Buffer Size

800 tags @ 96 bit EPC

Tag RSSI

Supported

Antenna Detector

Supported

Ambient Temp Monitor

Supported

The number of antennas

1 TNC antenna connector; 2 TNC antenna connector; 4 TNC antenna connectors for selections

Communication interface

10M/100MAdaptive Ethernet,RS232,RS485,Wiegand26/34 interface

Communication rate

Serial rate 9600~115200bps,RJ45 is 10Mbps

Secure firmware upgrade

The upgrade mechanism can be extended

input / output (GPIO)

2 inputs, 2 output

Application software

Supply API SDK and VC and VB, Java application routines

Tag Operation Performance

Reading distance

9dbi Antenna configuration, typical read range: 15 to 25 m (depends on tag)

Protocol

EPC global UHF Class 1 Gen 2 / ISO 18000-6C/ ISO18000-6B

Maximum receiver sensitivity

-82 dBm; Maximum return loss: 10 DBm

Mechanical electrical performance

Dimension

235(L) * 211 (W) * 40 (H) mm

RF Connector

TNC

Power

With 220V AC input, the output of +12 V/3A DC power converter

Weight

2.5KG

Humidity

5% to 95%, Non-condensing

IP rating

IEC IP51

Operating Temp.

-20 ºC to +60  ºC

Storage Temp.

-20°C to 85°C

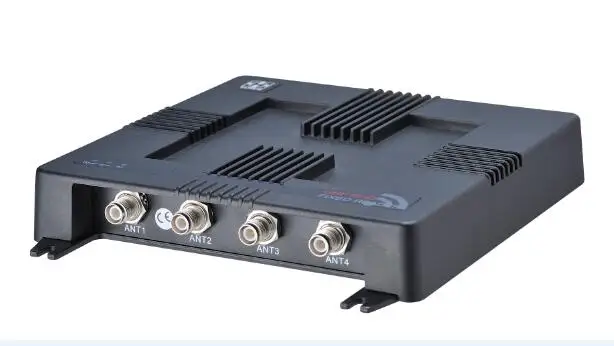

Product Picture With Different Interface:

UHF RFID Fixed ReaderUHF RFID Fixed Reader

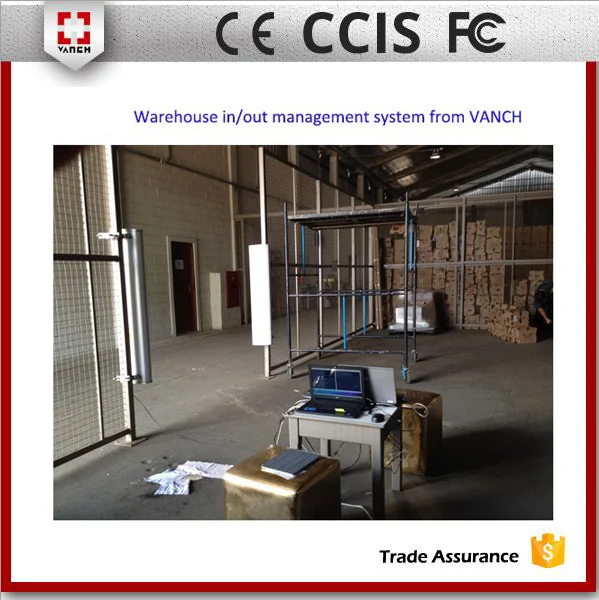

Different Application Pictures:

UHF RFID Fixed Reader

UHF RFID Fixed Reader

UHF RFID Fixed Reader

UHF RFID Fixed Reader

SDK And APK Picture:

UHF RFID Fixed ReaderUHF RFID Fixed Reader
