IP67 UHF RFID Integrated Reader With RJ45/RS232 Interface

FOB Reference Price:Get Latest Price
US $220-260 / Units | 1 Unit/Units parking lot card reader (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
VANCH
Model Number:
VI-89F
Type:
Integrated Reader
Antenna:
9dbi antenna
Frequency:
865-868/902-928mhz
Read range:
5-10m(tag dependant)
Application:
Security Access Control Management, car parking system
SDK:
API SDK and VC, VB, Java application routines
Interface:
TCP/IP, Wiegand, RS232/485 etc.
Working instruction:
LED light indicator
Installation:
Embrace rod mounting
Protect Range:
IP67
Supply Ability
Supply Ability:
500 Unit/Units per Month parking lot card reader
Packaging & Delivery
Packaging Details
1 unit of parking lot card reader in a carton
Port
Shenzhen
Lead Time :
3 days after receive the payment

IP67 UHF RFID Integrated Reader With RJ45/RS232 Interface

Product Description

 Features

1, Full support to meet the EPC global UHF Class1 Gen2 / ISO 18000-6C / ISO18000-6B electronic tag standard

2, Operating frequency is between 865-868MHz / 902- 928MHZ (can be adjusted according to different countries or regions)

3, RS232, RS485 and TCP / IP communication

4, Output power reach 30dbm, it is adjustable. Support auto mode, command mode and trigger mode.

5, highly reliable design of industrial structure to meet the requirement of work environment



Specification

Model#

VI-89F

Performance Index

Frequency range

902-928MHZ/865-868MHZ(or customized)

polarization

right-handed circularly polarized

Half-power beam width (°)

Horizontal polarization:65

Vertical:60

FM mode

FHSS or fixed frequency, set by the software

RF output

30dBm adjustable; 50Ω load

Communication interface

LAN, RS232, RS485, Wiegand26/34

Communication rate

Serial port 9600~115200bps, RJ45 10Mbps

GP I/O interface

I/O 12 pin + 4 pin

Power dissipation

average<10W

Application software

Provide with API SDK and VC, VB, Java application routines

Tag Operation Performance

Reading distance

6~10m equipped with 9dbi antenna(depends on the tag)

Air interface

EPC global UHF ISO-18000-6C(EPC G2),ISO-18000-6B

Mechanical and Electrical Performance

Dimension

260*260*65mm(excluding mounting bracket and external wiring)

Power supply

Equipped with power convertor 220V AC input, +9V/3A DC output

Working instruction

LED light indicator

Radome material

ABS Engineering Plastics

Radome Colour

White or grey

Weight

3kg

Installation

Embrace rod mounting

Diameter of support rod

35-50mm

Humidity

5% to 95%, non-condensing

Protection grade

IEC IP65

Operation temperature

-20 ºC to +60  ºC

Lightning protection

DC Ground

Connector interface

IP67 Grade waterproof quick connector





uhf rfid integrated reader

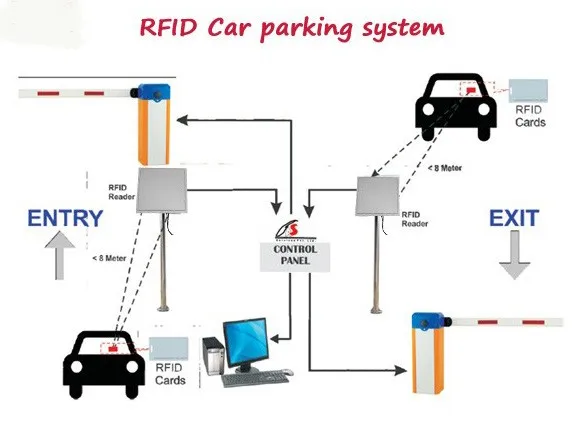

UHF Automatical Car Parking System



uhf rfid integrated reader

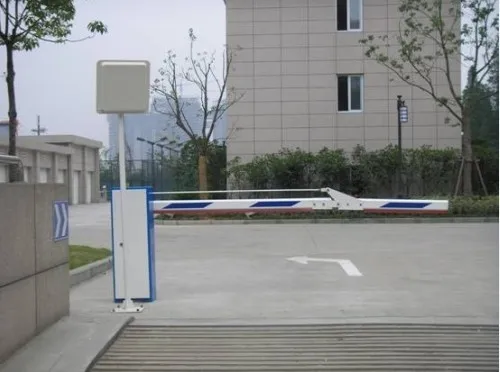

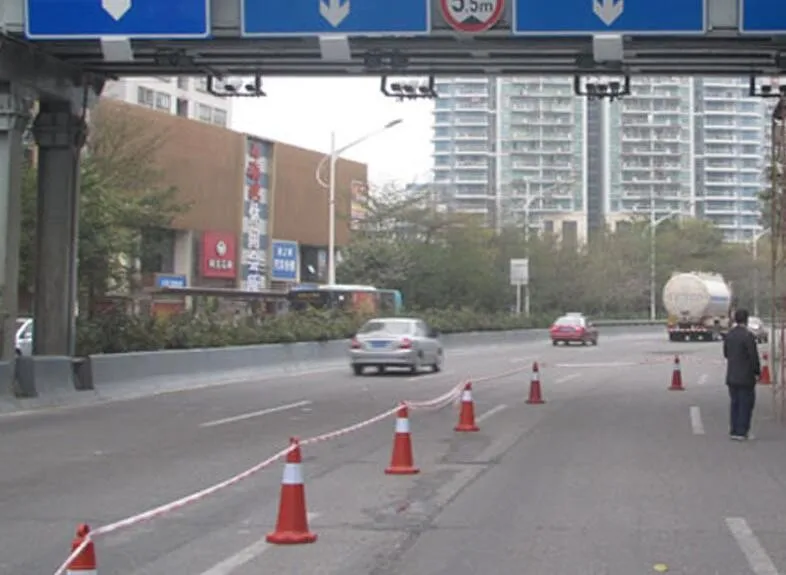

Actual Car Parking Project Picture

uhf rfid integrated readeruhf rfid integrated reader

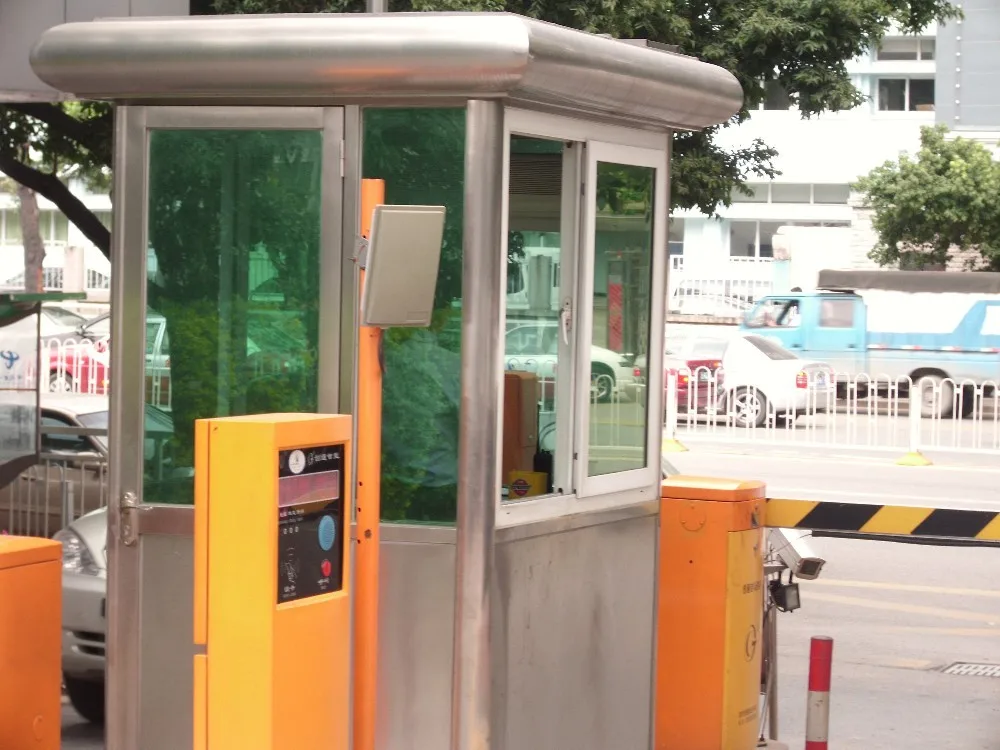

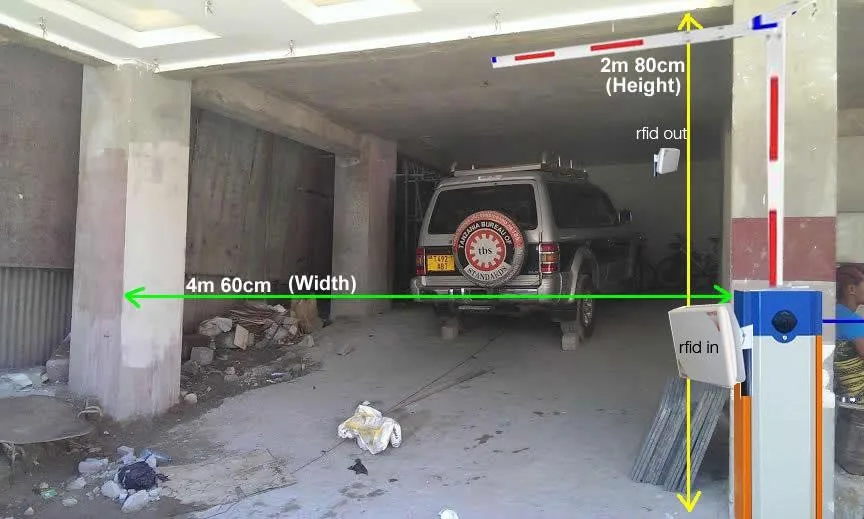

                  Single Car Access Control                                            Underground Single Car Parking

uhf rfid integrated readeruhf rfid integrated reader

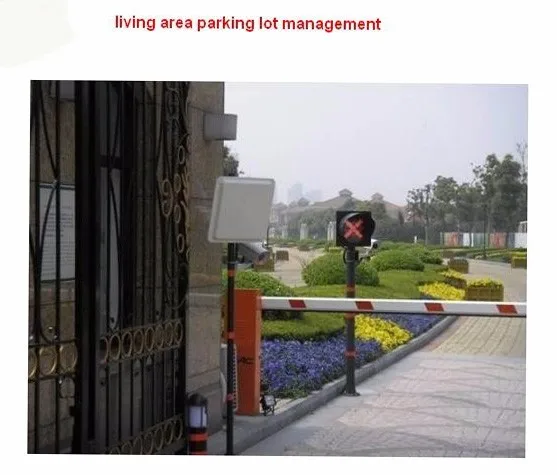

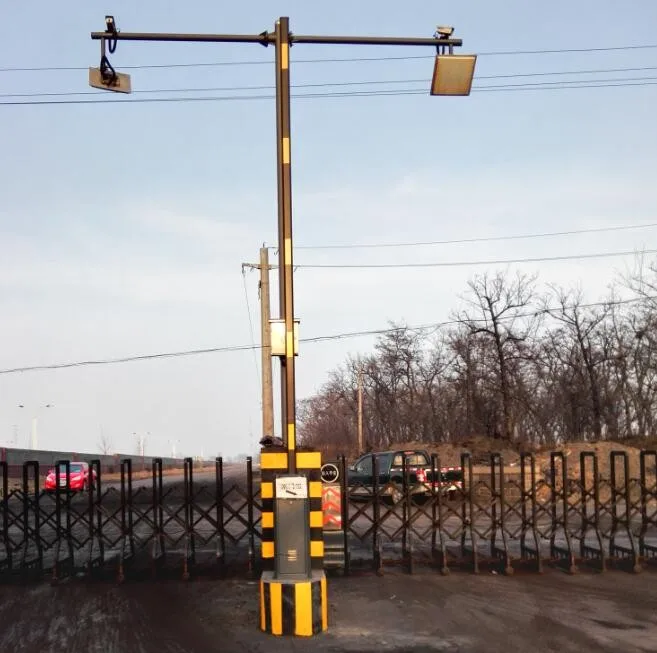

                Flexible Local Installation                                                 Apartment Car Parking



uhf rfid integrated readeruhf rfid integrated reader

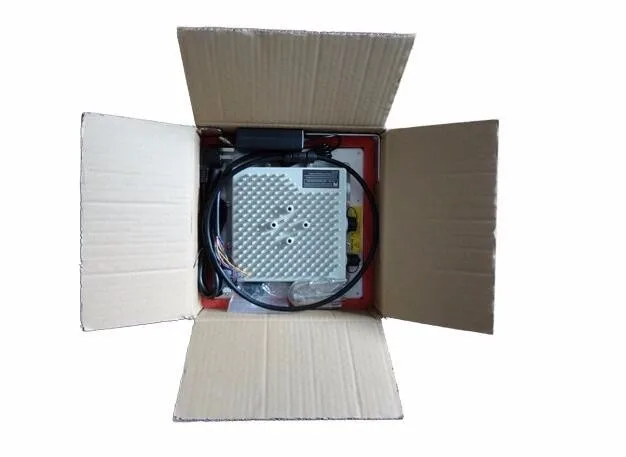

Packing Picture

uhf rfid integrated reader
