Short range integrated rfid reader rs232/rj45 for access control system

FOB Reference Price:Get Latest Price
$170.00 - $200.00 / Sets | 2 Set/Sets Intrgrated rfid reader (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
VANCH
Model Number:
VI-83F
Product name:
integrated uhf rfid reader
Protocol:
ISO-18000-6C/B(EPC G2)
Reading range:
2~5m(tag dependent)
Antenna:
9dBi
Communication:
LAN,RS232,RS485,Wiegand26/34
Dimension:
220*220*60mm
Weight:
2kg
software:
SDK and VC, VB, Java
Application:
accest, access control, parking/vehicle management
Supply Ability
Supply Ability:
600 Unit/Units per Month access control rfid reader
Packaging & Delivery
Packaging Details
Standard carton box
Port
Shenzhen
Lead Time :
shippment 2-5day working day after payment
Short range integrated rfid reader rs232/rj45 for access control system




Product Description



My contact information:
Eric Luo
E-mail: eric#vanch.net (#=@)
Mobile:0086 158 1850 8606
WhatsApp: 0086 158 1850 8606
Skype: eric_luo007
Wechat: 15818508606

Product Application:

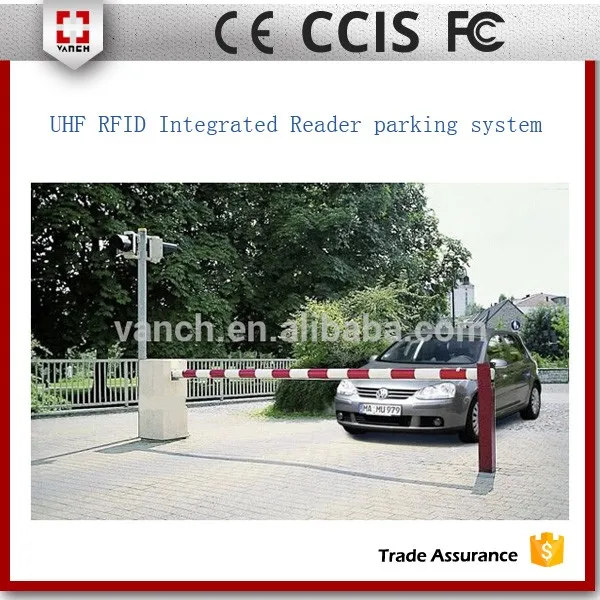

Application: logistics, asset, access control, parking/vehicle management, manufacturing control and etc.



Main features:



Reliable industry structure design, workable in varied severe environment.



Specification:



Specification



Model#

VI-83F



Performance Index

Frequency range

902-928MHZ/865-868MHz(or customized)

FM mode

FHSS or fixed frequency, set by the software

RF output

30dBm adjustable;50Ω load

Communication interface

LAN,RS232,RS485,Wiegand26/34,IEEE 802.11

Communication rate

Serial port 9600~115200bps,RJ45 10Mbps

GP I/O interface

12 pin + 4 pin

Power dissipation

average<10W

Application software

Provide with API SDK and VC, VB, Java application routines

Tag Operation Performance

Reading distance

3~5 m equipped with 9dbi antenna(tag dependent)

Air interface

EPC global UHF ISO-18000-6C(EPC G2), ISO-18000-6B

Mechanical and Electrical Performance

Dimension

220(L)*220(W)*60(H)mm(excluding mounting bracket and external wiring)

Power supply

Equipped with power convertor 220V AC input, +9V/3A DC output

Weight

1.8Kg

Installation

Embrace rod mounting

Diameter of support rod

40-50mm

Humidity

5% to 95%, non-condensing

IP rating class

IEC IP54

Operation temperature

-20 ºC to +60  ºC

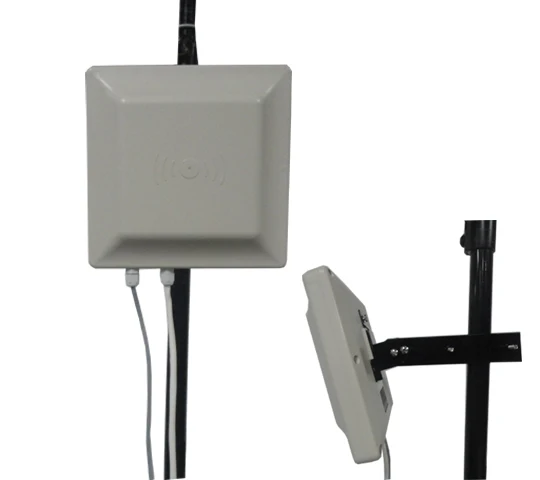

Product Show



   After-Sales Service

* Training how to instal the reader, training how to use the reader.

* Engineers available to service machinery overseas.

* We will offer free SDK, DEMO, User manual to you after you order our reader.

FAQ

1. You are factory or trading company?

    We are original equipment manufacturer in RFID UHF reader for over 10 years.

2. How is your QC?

    We have strict QC process and all the products will be 100% testing before shipping.

3. What is your payment term?

    100% payment should be paid before shipping.

4. What is your payment way?

    T/T, Western Union, Paypal

5. What is your warranty?

    within 1 year for the reader

6. Can I get technical support from you?

    Sure. Our sales are of all good knowledge in the field. Besides, we have a technical team behind to support.
