long distance uhf outdoor rfid reader for vehicle tracking

FOB Reference Price:Get Latest Price
US $200-245 / Sets | 1 Set/Sets uhf rfid antenna reader (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
VANCH
Model Number:
VI-86F
Product name:
integrated uhf rfid reader
Protocol:
ISO-18000-6C/B(EPC G2)
Reading range:
3~6m(tag dependent)
Antenna:
9dBi
Communication:
LAN,RS232,RS485,Wiegand26/34
Dimension:
306*306*25mm
Weight:
4kg
software:
SDK and VC, VB, Java
Application:
accest, access control, parking/vehicle management
Supply Ability
Supply Ability:
600 Unit/Units per Month access control reader
Packaging & Delivery
Packaging Details
Standard carton box
Port
Shenzhen
Lead Time :
shippment 2-5day working day after payment

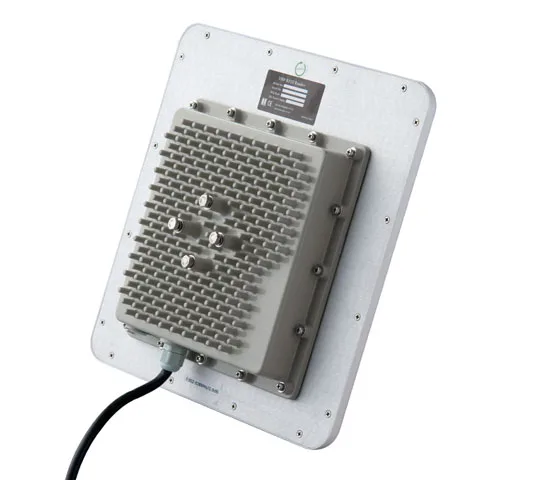

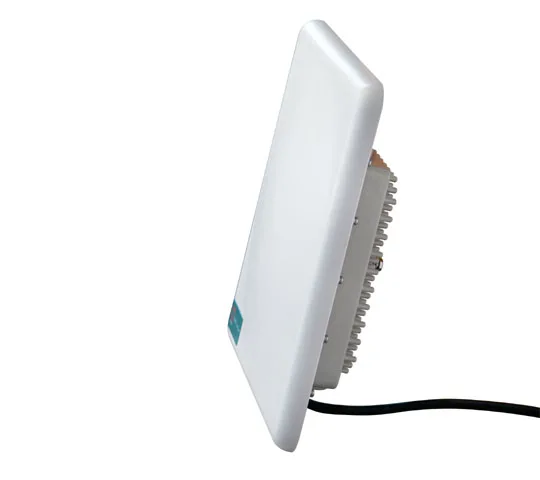

 long distance uhf outdoor rfid reader for vehicle tracking




Product Description



Product Application:



Application: logistics, asset, access control, parking/vehicle management, manufacturing control and etc.



Specification:



Specification



Model#

VI-86F



Performance Index

Frequency range

902-928MHZ/865-868MHz(or customized)

FM mode

FHSS or fixed frequency, set by the software

RF output

30dBm adjustable;50Ω load

Communication interface

LAN,RS232,RS485,Wiegand26/34,IEEE 802.11

Communication rate

Serial port 9600~115200bps,RJ45 10Mbps

GP I/O interface

12 pin + 4 pin

Power dissipation

average<10W

Application software

Provide with API SDK and VC, VB, Java application routines

Tag Operation Performance

Reading distance

5~8m equipped with 9dbi antenna(tag dependent)

Air interface

EPC global UHF ISO-18000-6C(EPC G2), ISO-18000-6B

Mechanical and Electrical Performance

Dimension

306(L)*306(W)*25(H)mm(excluding mounting bracket and external wiring)

Power supply

Equipped with power convertor 220V AC input, +9V/3A DC output

Weight

4Kg

Installation

Embrace rod mounting

Diameter of support rod

40-50mm

Humidity

5% to 95%, non-condensing

Protection grade

IEC IP54

Operation temperature

-20 ºC to +60  ºC

Product Show

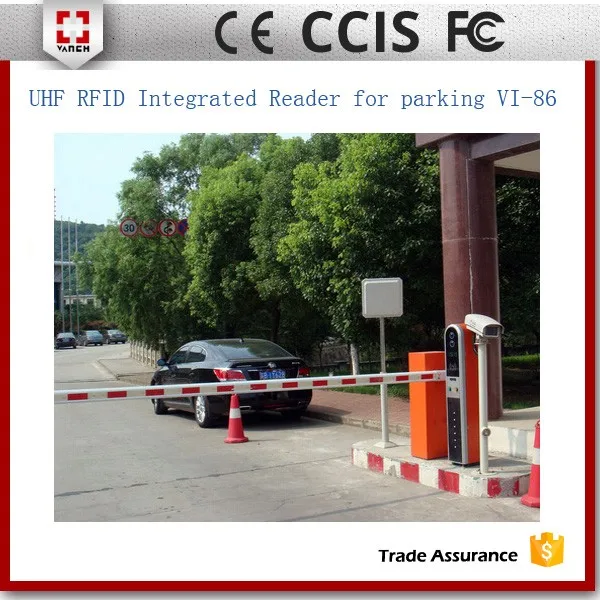

VI-86RRFID cars tracking system
1CERTIFICATE5

   After-Sales Service

* Training how to instal the reader, training how to use the reader.

* Engineers available to service machinery overseas.

* We will offer free SDK, DEMO, User manual to you after you order our reader.

Application Case

 application case

FAQ

1. You are factory or trading company?

    We are original equipment manufacturer in RFID UHF reader for over 10 years.

2. How is your QC?

    We have strict QC process and all the products will be 100% testing before shipping.

3. What is your payment term?

    100% payment should be paid before shipping.

4. What is your payment way?

    T/T, Western Union, Paypal

5. What is your warranty?

    within 1 year for the reader

6. Can I get technical support from you?

    Sure. Our sales are of all good knowledge in the field. Besides, we have a technical team behind to support.
