2-3M UHF RFID Gate Rugged Reader RS232 For library Attendance System

FOB Reference Price:Get Latest Price
US $1,550-1,600 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
VANCH
Model Number:
VC-420T
Product name:
UHF RFID Gate Reader
Protocol:
ISO-18000-6C/B(EPC G2)
Frequency:
860-868/902-928Mhz
Reading range:
1.5-3m (tag dependent)
Antenna:
9dBi
Communication:
LAN,RS232,RS485,Wiegand26/34
Dimension:
157(L)x44.5 (W)x13(H)cm
Weight:
80kg
software:
Provide with API SDK and VC, VB, Java
Application:
Library/Retail, Anti-theft, meeting attendance, warehouse assets
Supply Ability
Supply Ability:
600 Unit/Units per Month Access control reader
Packaging & Delivery
Packaging Details
Standard carton box
Port
Shenzhen
2-3M UHF RFID Gate Rugged Reader RS232 For library Attendance System




Product Description

Product Application:



   1. Based on independent intellectual property development, adapt reader to work with global frequency range.

   2. RFID gate reader is combined by RFID antennas, reader, EAS sound and light alarm system, power supply.

   3. Other assistant equipment. When goods or person attached with RFID tag go through the channel, RFID antenna

   4. Will read the information and real time send to reader and related processor, to achieve the goods or person management.

   5. Application: warehouse assets management, meeting attendance, clothes industry, books and files industry,

   6. Manufacturing control and other open fields with big flows.





Main features:



  1. Support tags conforming to standards EPC global UHF ISO-18000-6C (EPC G2), TK900;

  2. Frequency range 860~960MHZ(or customized);

  3. Support multi communication interfaces (LAN, RS232, RS485, Wiegand26/34);

  4. 4 SMA antenna ports, 9dbi circular polarization antenna, the height of antenna adjustable;

  5. RF output power 20 ~ 30dBm adjustable, support auto, command, trigger work modes;

  6. Reliable industry structure design, workable in varied severe environment.





Specification:



Specification



Model#

VC-420T

Performance Index

Frequency range

860-868/902-928MHZ(or customized)

FM mode

FHSS or fixed frequency, set by the software

RF output

20-30dBm adjustable

Antenna connection qty’

4 SMA antenna ports, 9dbi circular polarization antenna, the height of antenna adjustable

Communication interface

LAN,RS232,RS485,Wiegand26/34

Communication rate

Serial port 9600~115200bps,RJ45 10Mbps

Power dissipation

average<20W

EAS alarm

3s sound and light prompt

GP I/O interface

12 pin + 4 pin

Reliable firmware upgrade

Extensible upgrade mechanism

Application software interface

Provide with API SDK and VC, VB, Java application routines

Tag Operation Performance

Reading distance

1.5-3m equipped with 9dbi antenna (tag dependent)

Air interface

EPC global UHF ISO-18000-6C(EPC G2),TK900

Mechanical and Electrical Performance

Dimension

157(L)x44.5 (W)x13(H)cm

Power supply

220V AC input

Weight

80KG

Humidity

5% to 95%, non-condensing

Protection grade

IEC IP51

Operation temperature

-20 ºC to +60  ºC

Storage temperature

-40°C to 80°C

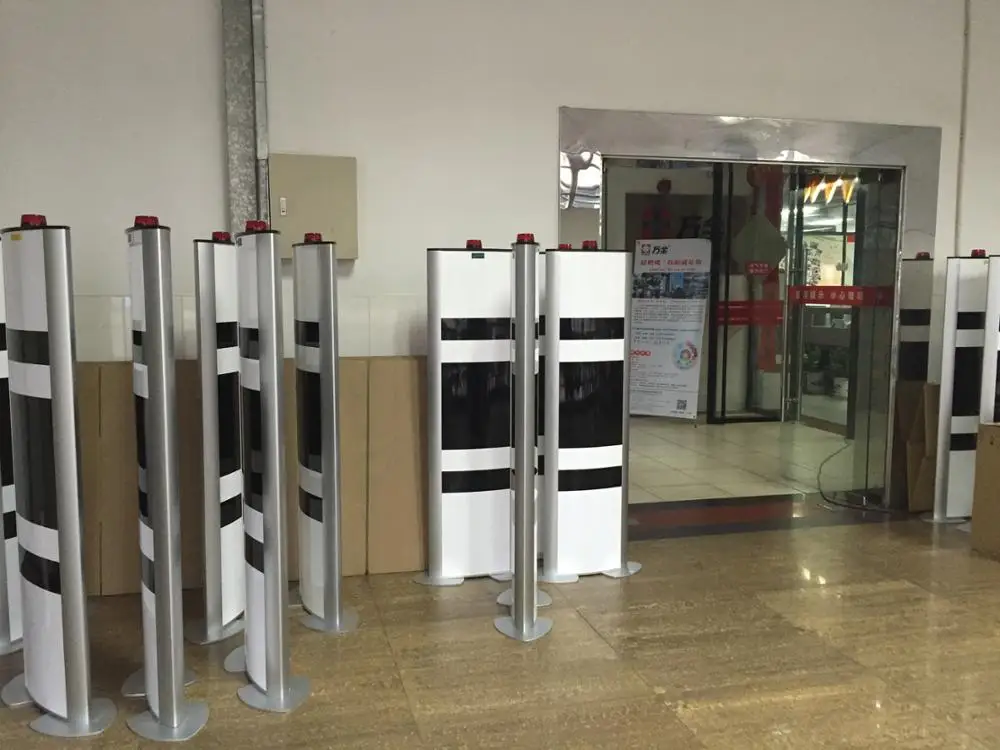

Product Show

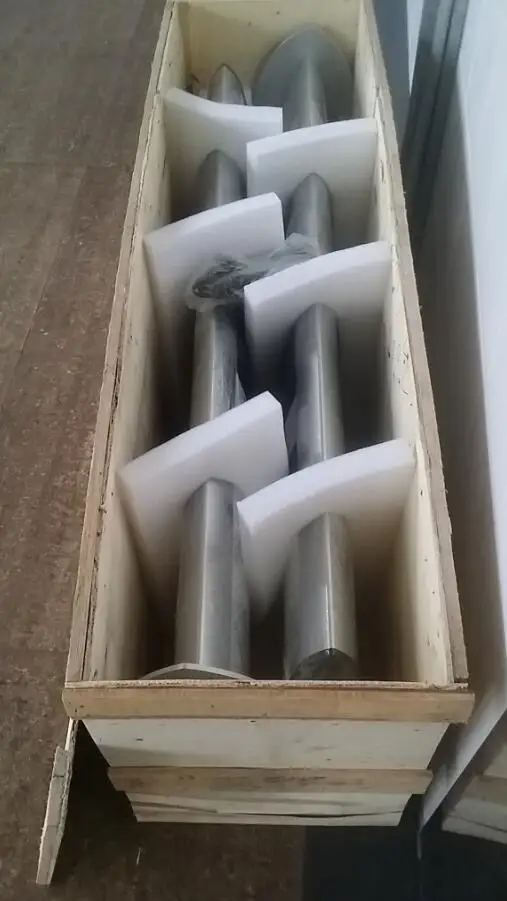

 feature.jpgIMG_3999QQ20170320153343.jpg       Wooden Box-1.jpg
81
1CERTIFICATE5

   After-Sales Service

* Training how to instal the reader, training how to use the reader.

* Engineers available to service machinery overseas.

* We will offer free SDK, DEMO, User manual to you after you order our reader.

FAQ

1. You are factory or trading company?

    We are original equipment manufacturer in RFID UHF reader for over 10 years.

2. How is your QC?

    We have strict QC process and all the products will be 100% testing before shipping.

3. What is your payment term?

    100% payment should be paid before shipping.

4. What is your payment way?

    T/T, Western Union, Paypal

5. What is your warranty?

    within 1 year for the reader

6. Can I get technical support from you?

    Sure. Our sales are of all good knowledge in the field. Besides, we have a technical team behind to support.
