TCP/IP RJ45 EPC Gen2 uhf desktop rfid reader writer for stock inventory

FOB Reference Price:Get Latest Price
$190.00 - $200.00 / Sets | 2 Set/Sets UHF RFID Desktop Reader (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
VANCH
Model Number:
VD-68
Product name:
UHF RFID Desktop Reader
Protocol:
ISO 18000-6B/C(EPC G2)
Communication:
TCP/IP, RS232, Wiegand26/34, RS485, USB port
Reading range:
read>1m, write>30cm
Dimension:
209(L)*138 (W)*33(H)mm
Weight:
1.2kg
software:
Provide with DLL, C++,C#, Java, VB
Application:
Access control, attendence, stock inventory, read/write card
Supply Ability
Supply Ability:
600 Unit/Units per Month access card reader writer
Packaging & Delivery
Packaging Details
1carton: 1set uhf rfid desktop reader*1pcs power cable
Port
Shenzhen
Lead Time :
shippment 3-5day working day after payment
TCP/IP RJ45 EPC Gen2  uhf desktop rfid reader writer for stock inventory




Product Description



Product Application:



 1. UHF RFID card-issuing and stock inventory device with serial port and LAN.
 2.Can read card; write card, authorization, format, stock inventory, access control, attendence and so on.





Specification:

Specification





Model

VD-68



Performance index



Frequency range

860-960MHZ(or Customized )



Frequency modulation

FHSS or fixed-frequency, can be set by software



Antenna connection qty’

Built-in antenna



Communication interface

TCP/IP, RS232, Wiegand26/34, RS485 can connect with USB port by pallet



Application software interface

Provide SDK with DLL, support secondary development



Tag Operation Performance



Reading distance

Built-in dual-mode antenna, read>80cm, write>30cm



Air interface

ISO-18000-6B, ISO-18000-6C(EPC G2), TK900



Mechanical and Electrical performance



Dimension

209(L)*138 (W)*33(H)mm



Power

DC12V/3A power supply



Weight

400g



Humidity

5% to 95%, non-condensing



Protection grade

IEC IP52



Operation temperature

-20 ºC to +60  ºC



Storage temperature

-40°C to 80°C







Main Features

 1. Support ISO-18000-6B,  ISO-18000-6C (EPC G2), TK900 Protocol
 2. Frequency range: 865-868, 902-928MHZ (or customized)
 3. Support LAN and serial port communication interface, the parameter can be customized
 4. Read and write cards with fast speed, supper performance and high sensitivity.

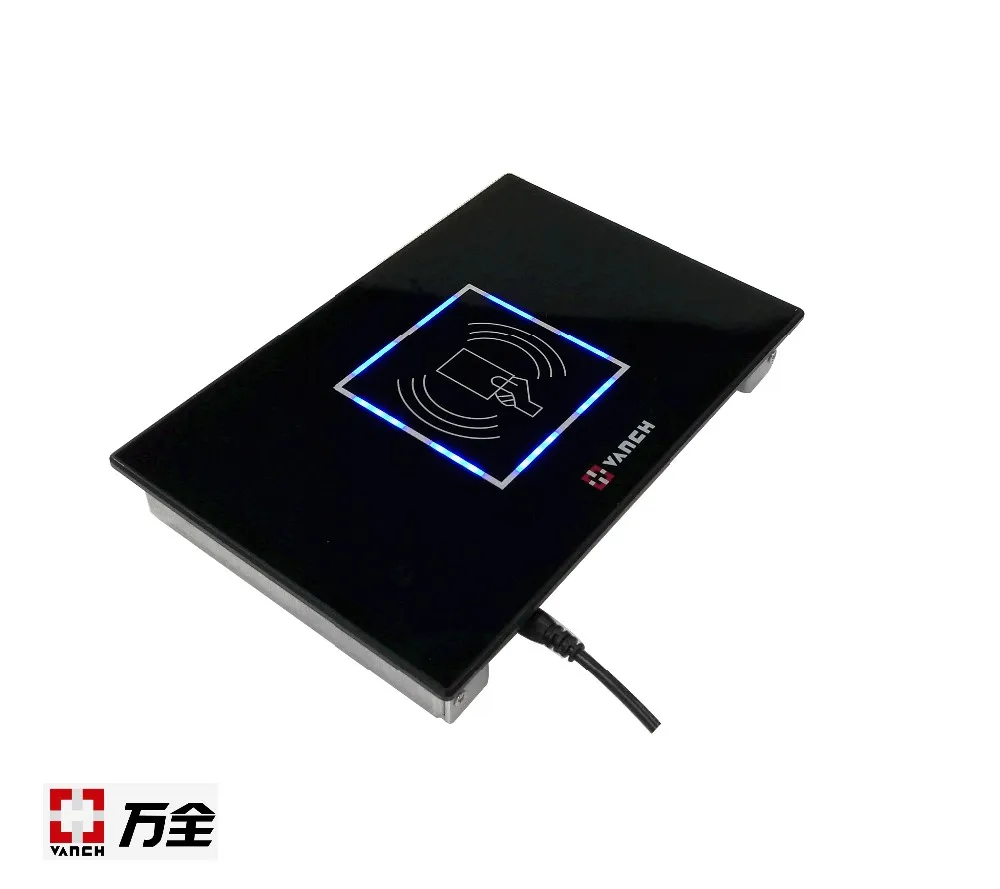

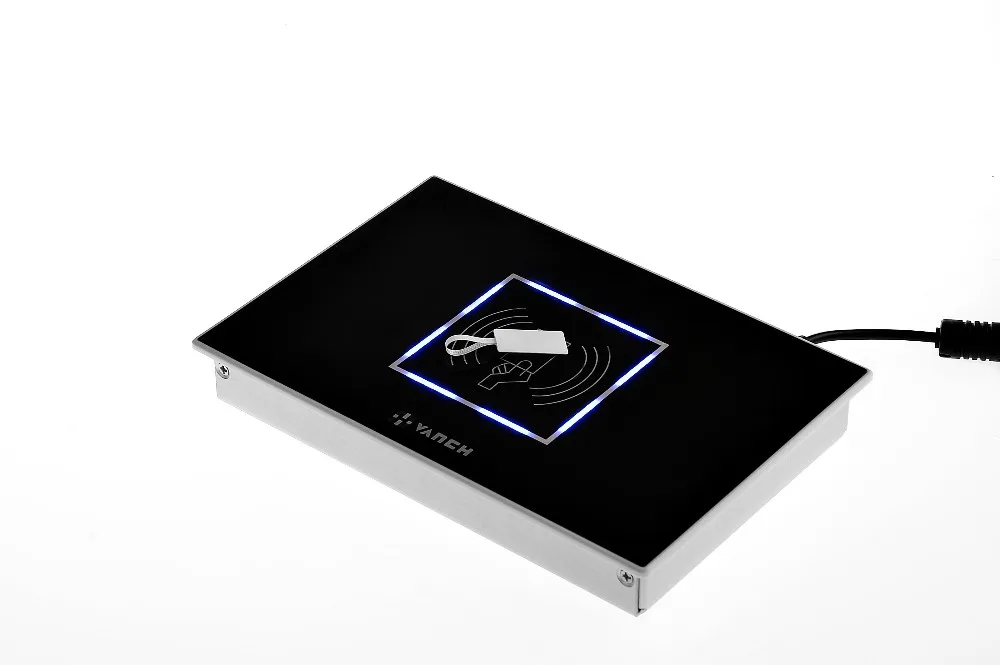

Product Show




 After-Sales Service

* Training how to instal the reader, training how to use the reader.

* Engineers available to service machinery overseas.

* We will offer free SDK, DEMO, User manual to you after you order our reader.

FAQ

1. You are factory or trading company?

    We are original equipment manufacturer in RFID UHF reader for over 10 years.

2. How is your QC?

    We have strict QC process and all the products will be 100% testing before shipping.

3. What is your payment term?

    100% payment should be paid before shipping.

4. What is your payment way?

    T/T, Western Union, Paypal

5. What is your warranty?

    within 1 year for the reader

6. Can I get technical support from you?

    Sure. Our sales are of all good knowledge in the field. Besides, we have a technical team behind to support.


Contact me for help



Eric Luo

E-mail: eric#vanch.net (#=@)

Mobile:0086 158 1850 8606

WhatsApp: 0086 158 1850 8606
Skype: eric_luo007

Wechat: 15818508606
