Vanch uhf Antenna Card RFID Reader Car Parking Entrance System Machine

FOB Reference Price:Get Latest Price
US $190-290 / Units | 1 Unit/Units Car Parking Entrance System Machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
VANCH
Model Number:
VI-89F
UHF Work Frequency:
865-868/902-928mhz
UHF Read range:
5-10m(tag dependant)
Interface:
TCP/IP, Wiegand26/34, RS232,LAN
UHF Protocol:
ISO 18000-6C
Polarization:
right-handed circularly polarized
SDK:
Provide with API SDK and VC, VB, Java application routines
Protect Range:
IP67
Antenna:
9 DBI
key words:
RFID Reader Car Parking Entrance System Machine
Application:
car access control, ETC and so on
Supply Ability
Supply Ability:
5000 Unit/Units per Month Car Parking Entrance System Machine
Packaging & Delivery
Packaging Details
1 unit of Car Parking Entrance System Machine in a carton
Port
Shenzhen
Lead Time :
3 days after receive the payment

Vanch uhf Antenna Card RFID Reader Car Parking Entrance System Machine

Product Description

 Features

1, Full support to meet the EPC global UHF Class1 Gen2 / ISO 18000-6C / ISO18000-6B electronic tag standard

2, Operating frequency is between 865-868MHz / 902- 928MHZ (can be adjusted according to different countries or regions)

3, RS232, RS485 and TCP / IP communication

4, Output power reach 30dbm, it is adjustable. Support auto mode, command mode and trigger mode.

5, highly reliable design of industrial structure to meet the requirement of work environment



Specification




Model#

VI-89F

Performance Index

Frequency range

902-928MHZ/865-868MHZ(or customized)

polarization

right-handed circularly polarized

Half-power beam width (°)

Horizontal polarization:65

Vertical:60

FM mode

FHSS or fixed frequency, set by the software

RF output

30dBm adjustable; 50Ω load

Communication interface

LAN, RS232, RS485, Wiegand26/34

Communication rate

Serial port 9600~115200bps, RJ45 10Mbps

GP I/O interface

I/O 12 pin + 4 pin

Power dissipation

average<10W

Application software

Provide with API SDK and VC, VB, Java application routines

Tag Operation Performance

Reading distance

6~10m equipped with 9dbi antenna(depends on the tag)

Air interface

EPC global UHF ISO-18000-6C(EPC G2),ISO-18000-6B

Mechanical and Electrical Performance

Dimension

260*260*65mm(excluding mounting bracket and external wiring)

Power supply

Equipped with power convertor 220V AC input, +9V/3A DC output

Working instruction

LED light indicator

Radome material

ABS Engineering Plastics

Radome Colour

White or grey

Weight

3kg

Installation

Embrace rod mounting

Diameter of support rod

35-50mm

Humidity

5% to 95%, non-condensing

Protection grade

IEC IP65

Operation temperature

-20 ºC to +60  ºC

Lightning protection

DC Ground

Connector interface

IP67 Grade waterproof quick connector





 Product Function List:

Vanch uhf Antenna Card RFID Reader Car Parking Entrance System Machine



Vanch uhf Antenna Card RFID Reader Car Parking Entrance System Machine

Vanch uhf Antenna Card RFID Reader Car Parking Entrance System MachineVanch uhf Antenna Card RFID Reader Car Parking Entrance System Machine

Vanch uhf Antenna Card RFID Reader Car Parking Entrance System Machine

Vanch uhf Antenna Card RFID Reader Car Parking Entrance System Machine

Vanch uhf Antenna Card RFID Reader Car Parking Entrance System MachineVanch uhf Antenna Card RFID Reader Car Parking Entrance System Machine

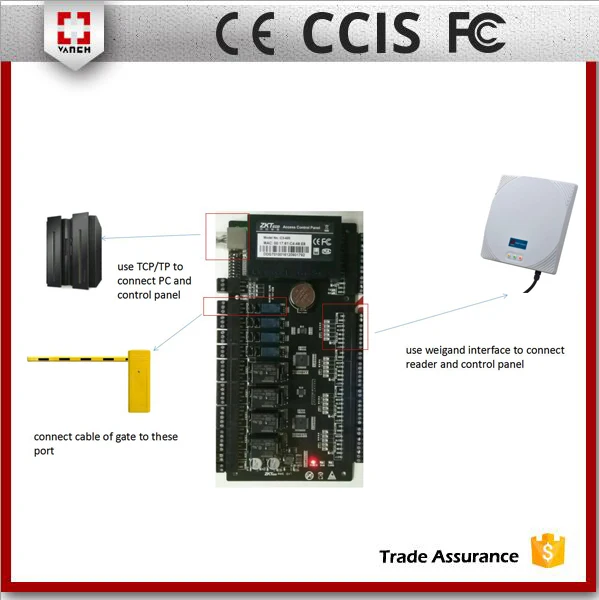

Integration System:

Vanch uhf Antenna Card RFID Reader Car Parking Entrance System Machine

Company Information

Vanch uhf Antenna Card RFID Reader Car Parking Entrance System Machine

VANCH was established in 2005, one of the earliest UHF RFID products manufacturer and application solutions supplier in China.

We are a leading professional manufacturer of UHF RFID reader, UHF RFID antenna and UHF RFID tag.

Vanch uhf Antenna Card RFID Reader Car Parking Entrance System Machine

Vanch uhf Antenna Card RFID Reader Car Parking Entrance System Machine

Vanch uhf Antenna Card RFID Reader Car Parking Entrance System Machine

Vanch uhf Antenna Card RFID Reader Car Parking Entrance System Machine

Vanch uhf Antenna Card RFID Reader Car Parking Entrance System Machine

FAQ

1. You are factory or trading company?

    We are original equipment manufacturer in RFID UHF reader for over 10 years.

2. How is your QC?

    We have strict QC process and all the products will be 100% testing before shipping.

3. What is your payment term?

    100% payment should be paid before shipping.

4. What is your payment way?

    T/T, Western Union, MoneyGram

5. What is your warranty?

    within 1 year.

6. Can I get technical support from you?

    Sure.

    Our sales are of all good knowledge in the field. Besides, we have a technical team behind to support.
